Product Name: 100A 5PIN Waterproof wall-through terminal block
Number of Pins: 5 P

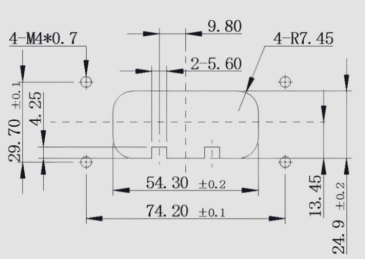

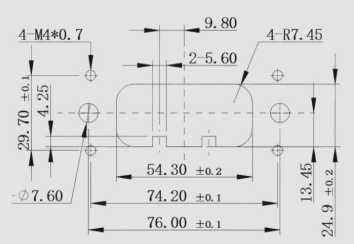

Cut-out:

Unlocking mode: Tools to Unlock
Rated Current: 101A
Rated Voltage: 1000V AC
Rated impulse Voltage: 8KV AC
Wire gauge:internal 6AWG MAX
external:25 mm2(Y JVR/Y JV/YJY) 35mm2(YJV/YJY)
Applicable wire outer diameter: 30mm Max
Degree of protection (IP): IP68(1m-1H)
