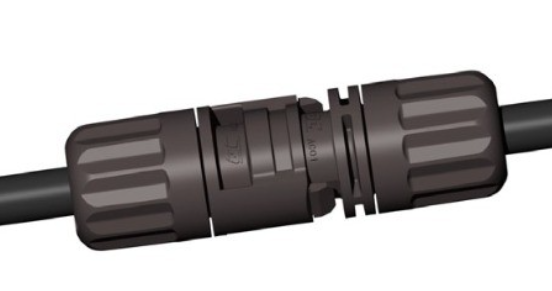

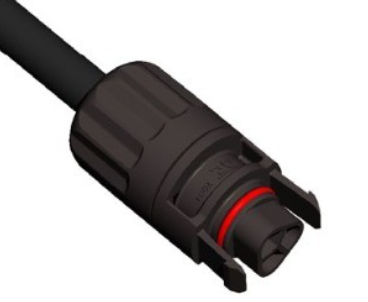

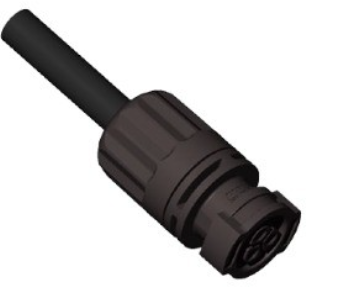

Product Name: AC01 Connector
Electrode Numer: L+N+PE
Rated Voltage: 300V AC
Rated Current: 10A
Dielectric withstand voltage: 3000V
Material of pin: Copper Alloy
House Material: PA66
Enclosure flame class: V-0
Pollution degree: II
Protection Degree: IP68
Insulation resistance: ≤5mΩ
Applicable environment temperature: -40℃~+85℃
Outer cable: Specification 3*1.0mm², Diameter 6-8.4mm
Standard: EN61984
