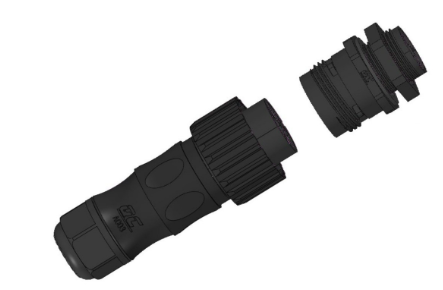

Product Name: AC03-PF/AC03-WM
Electrode Numer: L+N+PE
Rated Voltage: 300V AC
Rated Current: 38A(3*6mm²), 32A(3*4mm²), 20A(3*2.5mm²)
Dielectric withstand voltage: 4000V
Material of pin: Copper alloy
House Material: PC
Enclosure flame class: UL9.4-V0
Pollution degree: II
Protection Degree: IP68
Insulation resistance: ≤3mΩ
Applicable environment temperature: -40℃~+85℃
Outer cable: Specification 2.5-6mm²， Diameter 8-16mm
Standard 2 PfG 1915/0.3.15
