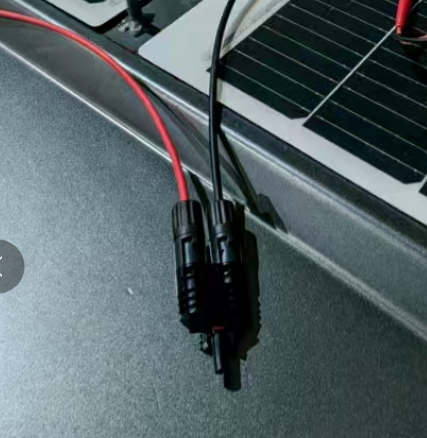

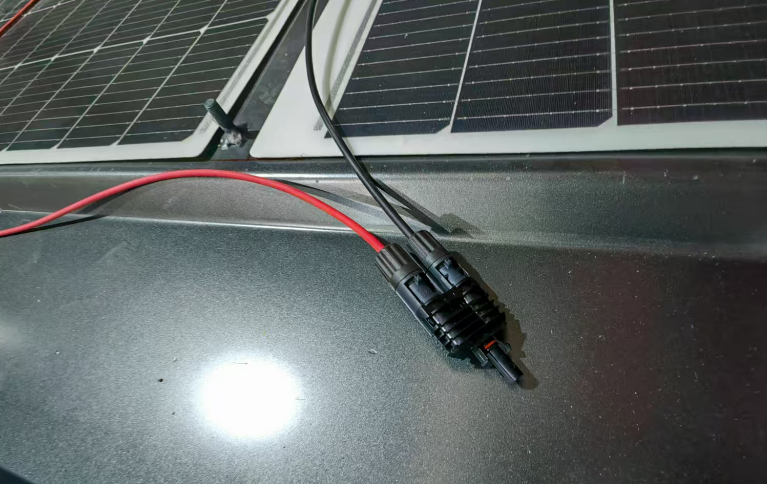

Product Name: Photovoltaic three brancher
Datesheet:
Rated voltage: IEC1500V
Current rating: 50A
Cable size: 4mm²，6mm²，10mm²
Connector breaking force:≥80N
Temperature range: -40℃~+85℃
Contact resistance: <0.5mΩ
Ingress protection: IP68（1m,1h）
Fire rating: 5VA
